Model No. TP-3065HR

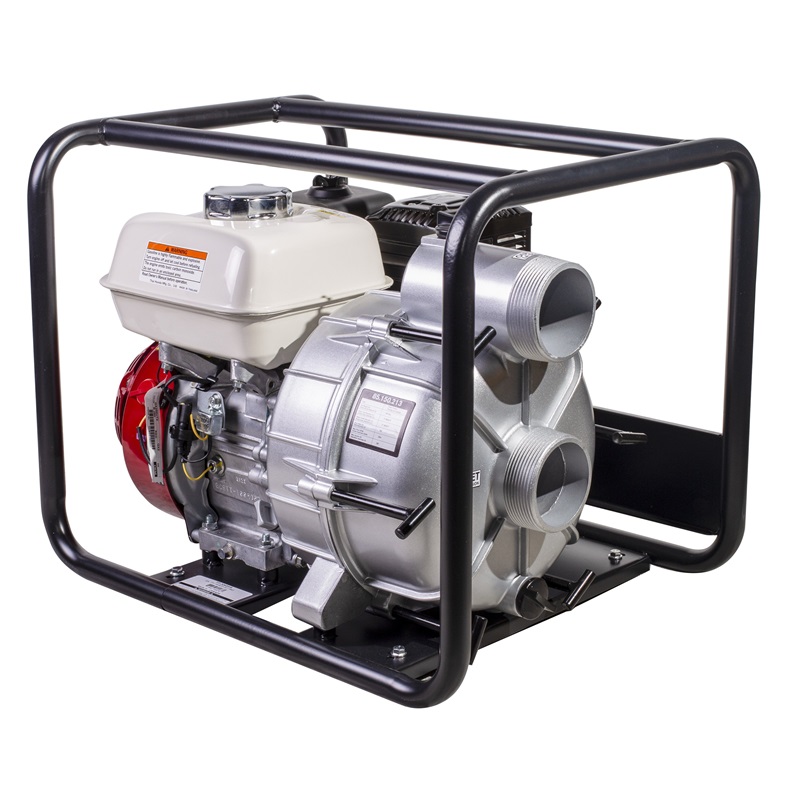

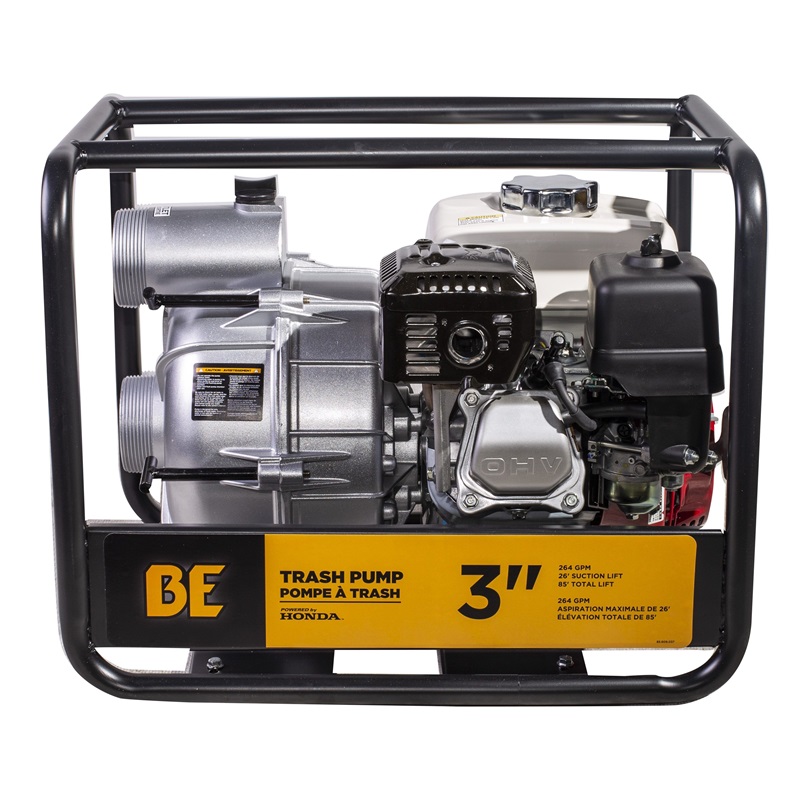

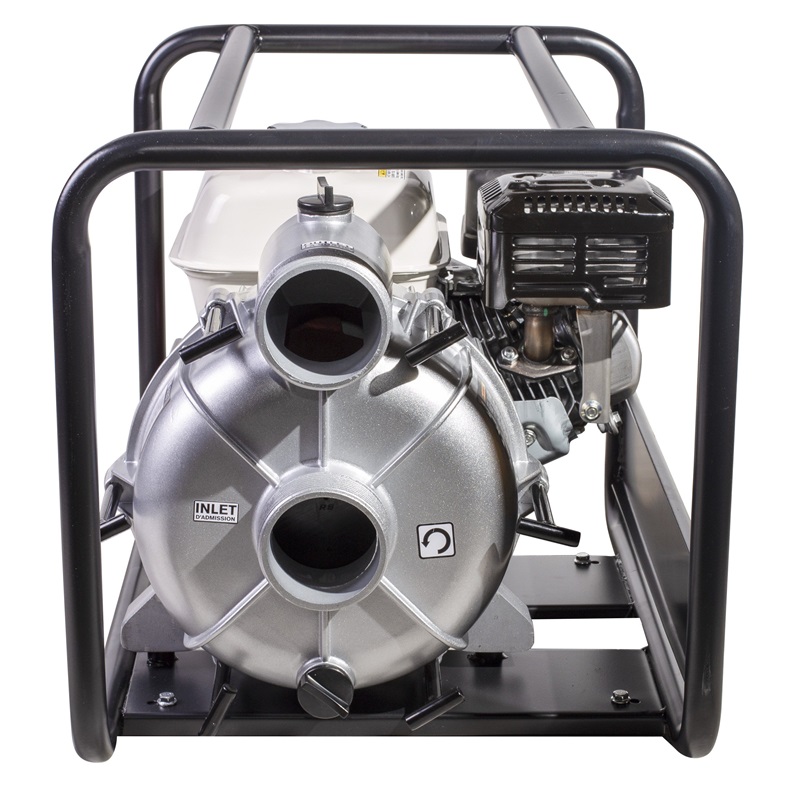

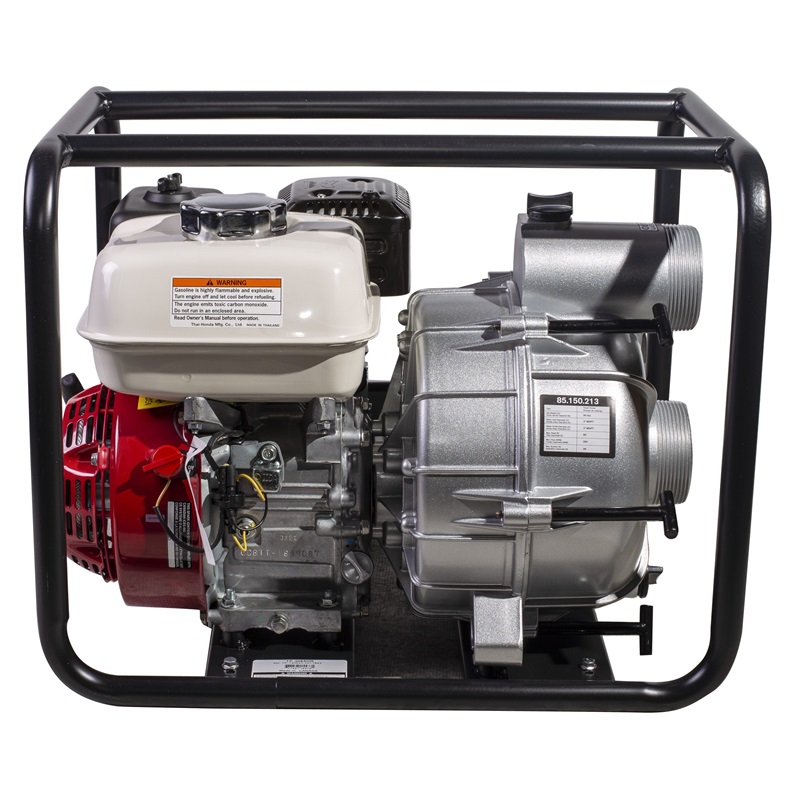

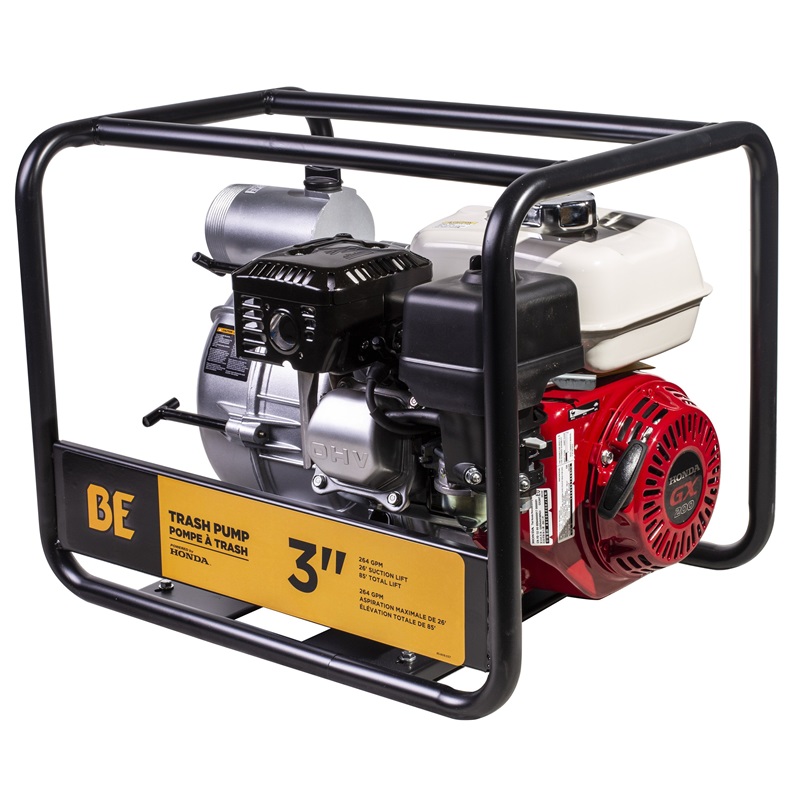

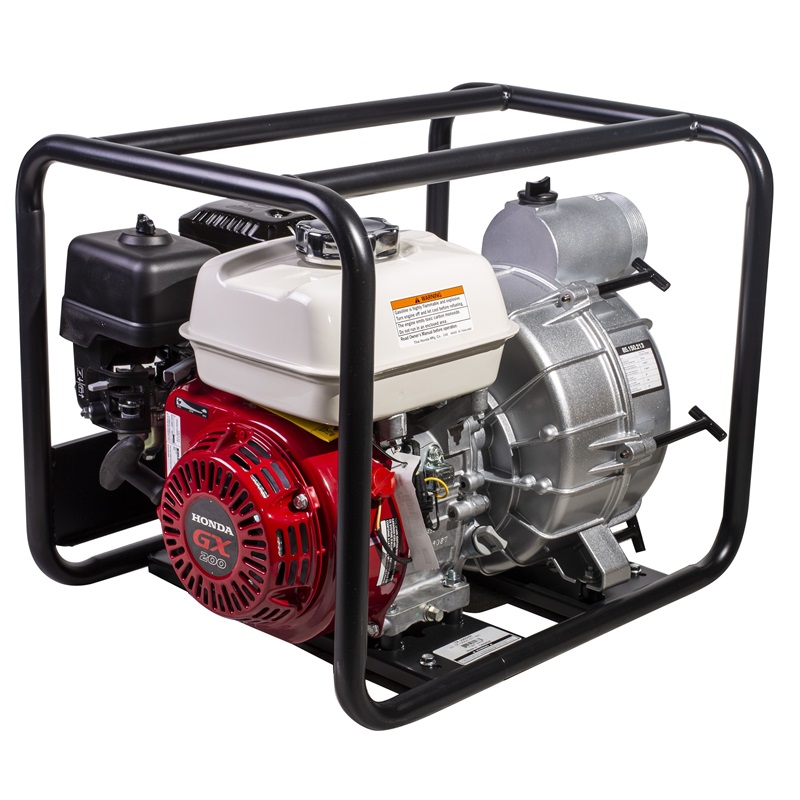

BE 3" Honda Engine Semi-Trash Water Pump 264GPM 200cc

TP-3065HR

Features

  • Reinforced semi-trash water pump that will handle water with dirt, grit and small rocks.
  • Commercial Honda engine with excellent weight to power ratio. Designed to be used all day, everyday
  • Reinforced aluminum body and cast iron impellers can handle solids up to 5/8" making this pump ideal for moving dirty water
  • Steel roll cage protects the machine and provides ergonomic hand holds to easily maneuver it.
  • Built-in data plate includes all the key information the user would need to operate.
  • 3 year warranty on the engine and 2 year warranty on the pump
  • The actual product may vary from the images shown on the website.

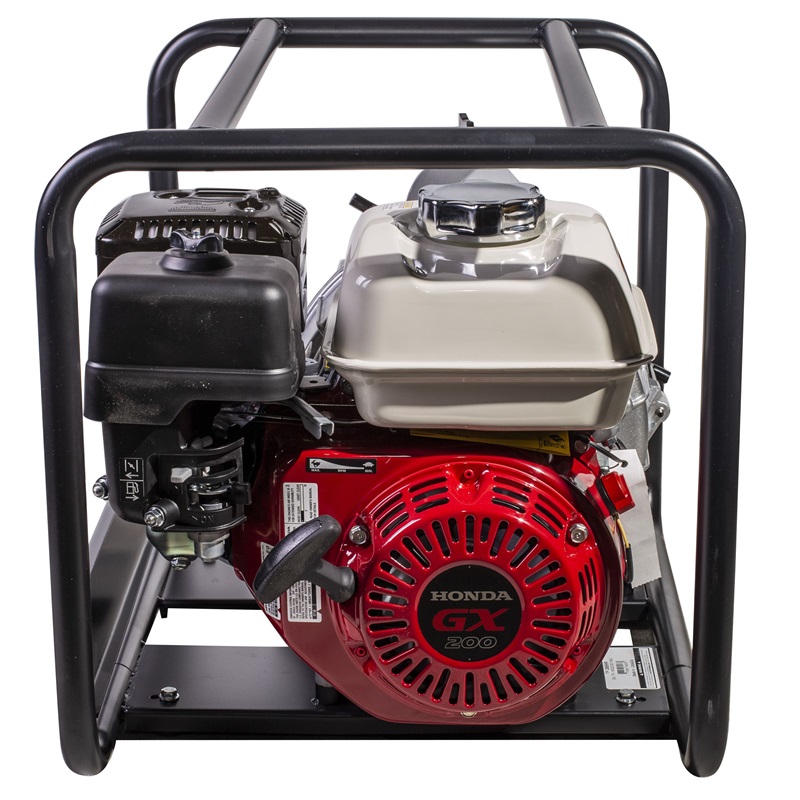

Engine Model Honda GX200
Engine Type Air cooled, 4-stoke OHV
Engine Displacement 196cc
Fuel Type 86 Octane, up to 10% Ethanol
Engine Oil Type SAE 10W30
Pump Inlet/Outlet Size 3"
GPM 264
PSI 36
Max Solid 5/8"
Suction Lift 26 Feet
Discharge Lift 59 Feet
Total Lift 85 Feet
Unit Weight 82 Lbs
Boxed Weight 90 Lbs
Unit Dimension (L x W x H) 21" x 17" x 19"
Warranty, Engine 3 Years
Warranty, Pump 2 years
Replacement Parts, Pump Kit (Special Order) 85.150.213
Replacement Parts, Impeller (Special Order) 50.103.201
Replacement Parts, Seal Kit (Special Order) 50.103.202
Replacement Parts, Drain Plug (Special Order) 50.002.203
